Gang sheet length calculator - worked examples

To estimate gang-sheet length for repeated rectangular designs, work out how many copies fit across the usable width. Divide the copy count by that number, round up to whole rows, and add the vertical gaps and end margins. Check the resulting layout before ordering film or releasing a file.

Every dimension and quantity below is an example assumption. The formulas describe a simple grid, not an automatic nesting result. Use the spacing, margins, and sheet rules required by your transfer supplier.

Define the dimensions before calculating

Start with the sheet's physical width and the space that must remain unused at its sides. Subtract those side margins to find usable width. Then measure the design's bounding box at its intended print size.

The bounding box may include transparent padding. Decide whether that padding must remain or whether the file can be trimmed without changing the visible design. Do not silently resize artwork to make a calculation work.

Write down horizontal gap, vertical gap, top margin, and bottom margin separately. A single spacing field can be ambiguous if staff interpret it as both the gap between designs and the border around the sheet.

The gang-sheet layout calculator can help compare planning inputs. Its result still needs to be checked against the supplier's actual file and production requirements.

Calculate how many copies fit across

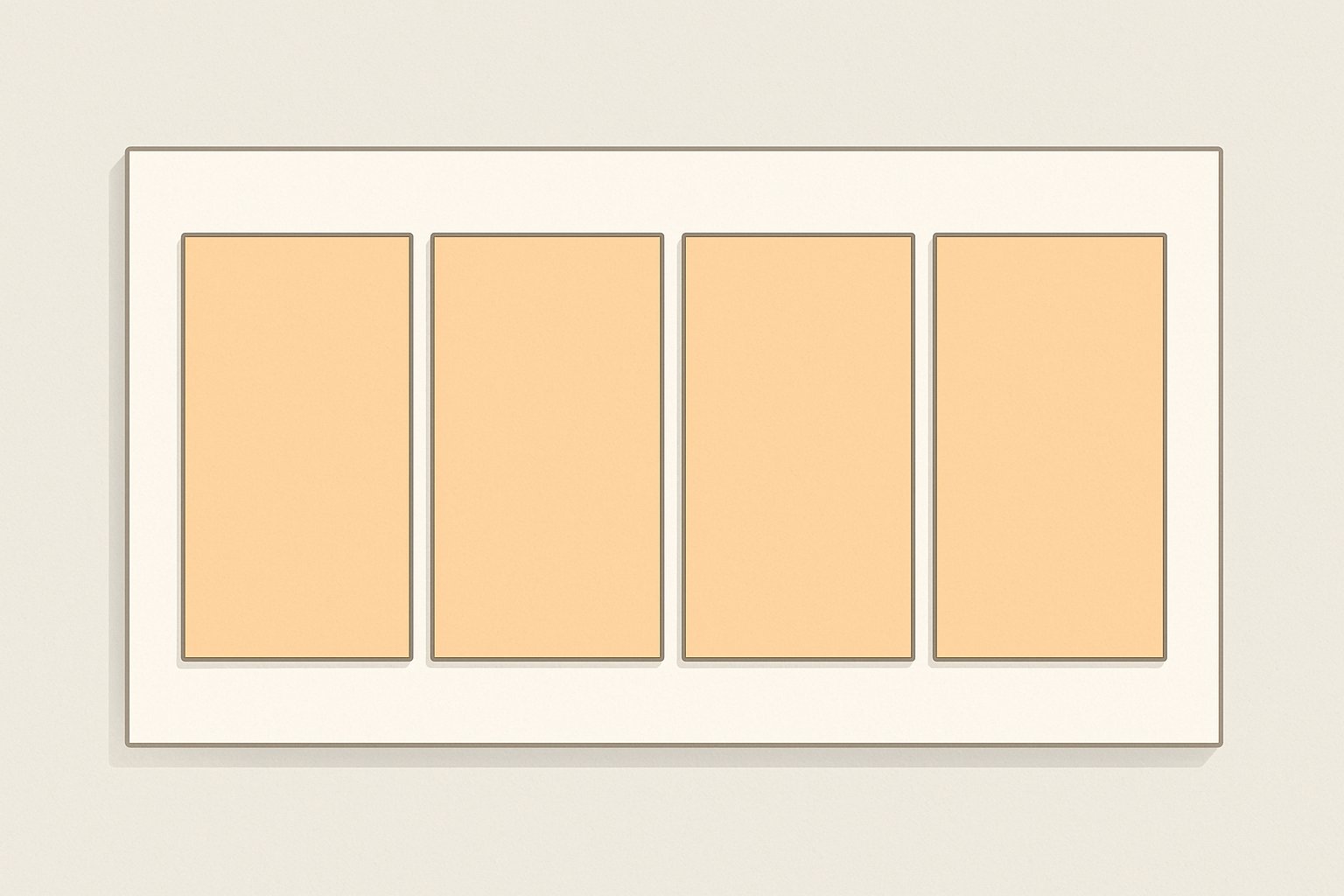

For identical rectangles in a regular row, the gaps occur between the designs. There is no extra internal gap after the last design; the side margin is handled separately.

Formula: usable width = sheet width − left margin − right margin.

Formula: copies across = round down((usable width + horizontal gap) ÷ (design width + horizontal gap)).

Example: assume a 22-inch sheet, 0.5-inch margins on both sides, a 5-inch design width, and a 0.25-inch horizontal gap. Usable width = 22 − 0.5 − 0.5 = 21 inches. Copies across = round down((21 + 0.25) ÷ (5 + 0.25)) = round down(4.0476) = 4.

Check the fit directly. Formula: occupied row width = copies across × design width + (copies across − 1) × gap. For the example, occupied width = 4 × 5 + (4 − 1) × 0.25 = 20.75 inches. That fits inside the example usable width of 21 inches.

If the formula returns no copies across, the design does not fit in that orientation. Do not continue by dividing the quantity by zero. Consider a permitted rotation, another sheet width, or a customer-approved size change.

Convert the copy count into rows

Partial rows still consume length. Round upward whenever the quantity does not divide evenly by the number across.

Formula: rows required = round up(copy count ÷ copies across).

Example: continue with 18 copies and 4 across. Rows required = round up(18 ÷ 4) = round up(4.5) = 5 rows. The last row contains fewer copies, but it still needs the design's full height.

Confirm that copy count means individual designs, not sheets. If the customer buys several identical gang sheets, calculate the layout of a sheet first and keep the sheet quantity as a separate order field.

Also check whether spare copies are permitted. Empty space in the last row is not permission to print additional customer artwork or change the order quantity. Keep any extra production copies separate from the sold quantity.

Add height, gaps, and end margins

Formula: required length = rows × design height + (rows − 1) × vertical gap + top margin + bottom margin.

Example: assume the design is 7 inches tall, the vertical gap is 0.25 inch, and the top and bottom margins are each 0.5 inch. Using the example's 5 rows, required length = 5 × 7 + (5 − 1) × 0.25 + 0.5 + 0.5 = 37 inches.

This is the layout length under the stated assumptions. It is not automatically the supplier's billable length. A supplier may sell fixed sizes or apply a minimum, so confirm the ordering rule before turning the result into a purchase.

Example: if a hypothetical supplier sells only 36-inch and 48-inch lengths, the calculated 37-inch layout cannot fit the smaller option. The 48-inch option would be the available choice for this example, subject to all other supplier rules. Those sizes are assumed for illustration, not a claim about a real supplier.

Test rotation as a separate layout

Rotation can change the number across and the row height. Recalculate the whole grid rather than assuming that turning a design always reduces length.

Example: rotate the same assumed 5 × 7-inch designs so their width is 7 inches and height is 5 inches. Keep usable width at 21 inches and both gaps at 0.25 inch.

Formula: rotated copies across = round down((usable width + gap) ÷ (rotated width + gap)). Example: round down((21 + 0.25) ÷ (7 + 0.25)) = round down(2.9310) = 2.

Formula: rotated rows = round up(quantity ÷ rotated copies across). Example: round up(18 ÷ 2) = 9.

Formula: rotated length = rows × rotated height + internal gaps + end margins. Example: 9 × 5 + (9 − 1) × 0.25 + 0.5 + 0.5 = 48 inches.

In this example, the regular grid in the original orientation is shorter. A mixed-orientation arrangement might differ, but it requires a real layout. Do not describe either grid as the mathematically optimal nest.

Understand the limit of area estimates

Total design area divided by usable width provides an optimistic lower bound before gaps, margins, and packing losses. It does not prove that the shapes fit together.

Formula: area-only length = total rectangular design area ÷ usable width.

Example: 18 designs measuring 5 × 7 inches have total area = 18 × 5 × 7 = 630 square inches. Area-only length = 630 ÷ 21 = 30 inches. The grid example needs 37 inches after its actual arrangement and allowances are included.

The difference is not evidence of a poor builder. It reflects that area and geometry answer different questions. Mixed sizes, holes between shapes, and cutting needs can all require a longer arrangement than an area division suggests.

Handle mixed artwork with a layout

For different design sizes, create a list of dimensions and quantities. Separate any designs that cannot rotate or must remain grouped for cutting. Use the actual artwork boundaries rather than guessing from a thumbnail.

Build a tentative arrangement, inspect the gaps, and count every design. Check that nothing overlaps or extends into the margins. Save a copy before trying another arrangement so you can compare usable length without losing the original counts.

An application can help with placement, but its output needs the same inspection. Digital Factory's documentation, for example, describes layout and queue tools; that does not establish a guaranteed optimal packing result for a particular job. Digital Factory introduction.

Verify the exported dimensions

Before ordering or printing, reopen the final file and confirm its physical dimensions. Check that the export did not scale the sheet to a default page size. Confirm the copy count against the order record, especially after a last-minute change.

Keep artwork approval separate from the arithmetic. The calculation can be correct while the wrong design or version is on the sheet. Record the accepted layout and the production master together.

When estimating price, use the supplier's billable dimensions and actual terms. The gang-sheet pricing calculator can help with that separate step. Do not price only the sum of design areas when the purchased product is the whole sheet.
