DTF Gang Sheet Builder - Beginner Guide

A DTF gang sheet builder is a layout tool that puts multiple transfer designs on one print sheet. It can save material when you have several designs, sizes, or repeat orders to produce. It does not repair low-quality artwork or decide the right garment size for you.

The reliable workflow is simple: prepare the art first, set the correct sheet size, place designs at their final print sizes, leave practical separation, and review the exported layout before sending it to production. The builder can be an online order tool, a design program, or a print workflow system. The checks are the same.

What a DTF gang sheet builder does

A gang sheet is one sheet containing more than one design. For example, a shop may combine left-chest logos, full-front graphics, and small sleeve marks on the same sheet when they use the same production run.

A builder usually lets you do these jobs:

• choose a sheet width and length
• upload artwork files
• enter a width or height for each design
• duplicate a design for repeated copies
• rotate and move artwork
• show unused space in the layout
• export the completed sheet or pass it into an order workflow

Some tools also offer auto-placement. Auto-placement can speed up a first draft, but it is still your job to confirm size, orientation, clear space, and artwork quality. Treat automation as a layout aid, not as final approval.

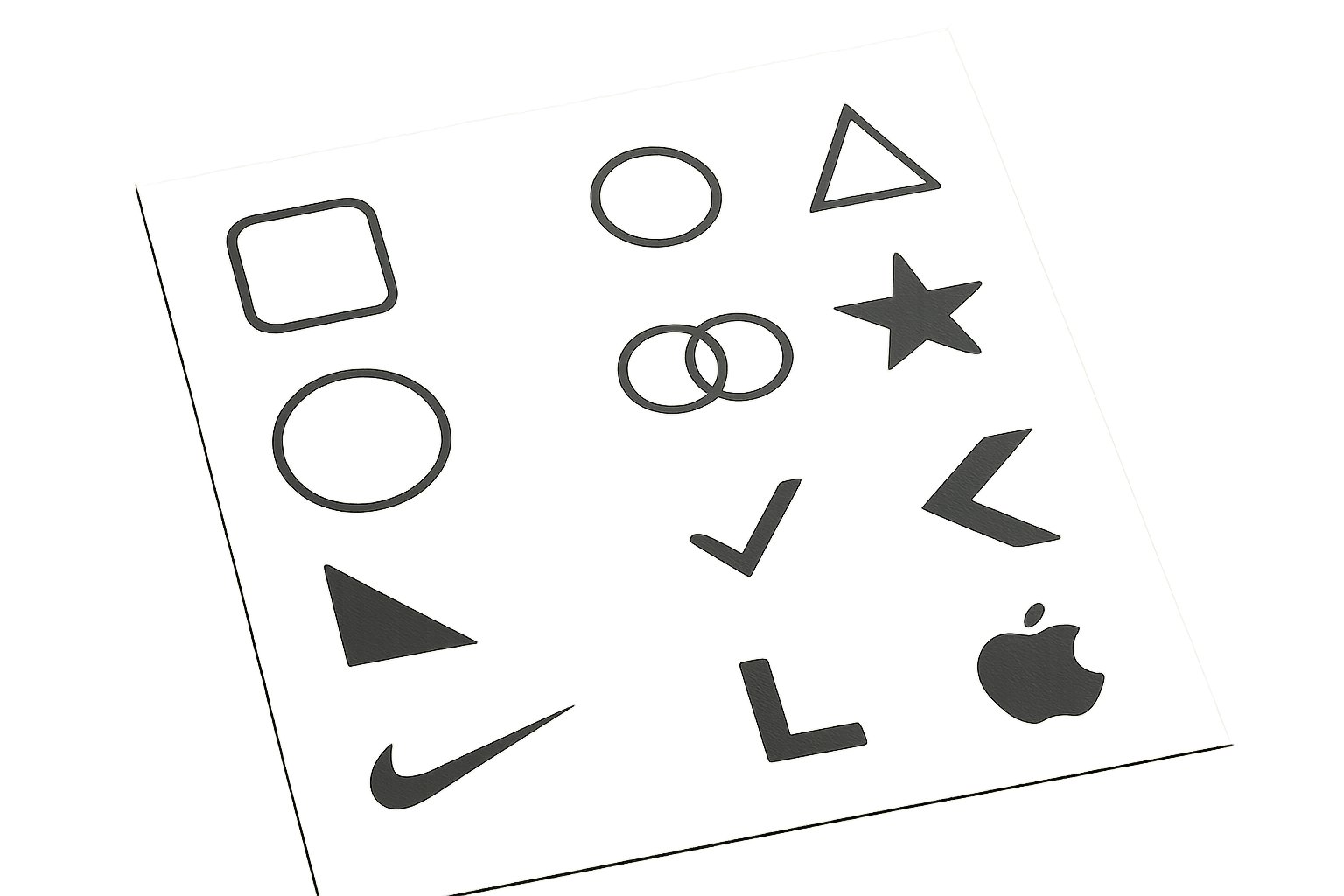

A layout should make each design easy to identify and cut apart.

Prepare artwork before opening the builder

Do not start by filling empty space. Start by checking every art file. A layout is only as usable as the artwork placed into it.

Use the final physical size

Decide the finished transfer size before uploading. Measure the intended print area on a sample garment or use the size requested in the order. Do not use an on-screen thumbnail as a size decision. Two graphics that look similar on a monitor can be very different once pressed on a garment.

Write down the target size for each item. For example, name an artwork file with the design name and intended size, such as mountain-logo-3in-wide.png. Clear file names reduce mix-ups when one design appears in several sizes.

Check resolution at the placed size

A common supplier guideline is to provide PNG artwork with transparency at 300 DPI at final print size. That is a file-preparation guideline, not a promise that every image will print well. Fine detail, compression damage, and soft edges can still show in the transfer.

You can check the pixel requirement with this formula:

$$ \text{pixels needed} = \text{print size in inches} \times \text{target DPI} $$

Example: for a 10-inch-wide design at 300 DPI:

$$ 10 \text{ in} \times 300 \text{ pixels per inch} = 3{,}000 \text{ pixels wide} $$

If the art is 1,200 pixels wide and you place it at 10 inches, its effective resolution is:

$$ \text{effective DPI} = \frac{1{,}200 \text{ pixels}}{10 \text{ in}} = 120 \text{ DPI} $$

That example does not predict a pass or fail result. It shows why enlarging a small file can reduce available image detail. Use the DTF image DPI checker to check the math before you place artwork.

Confirm transparency and edges

Use a file that has real transparency where no ink should print. A white rectangle behind a design may be part of the file, not an empty background. Zoom in around soft shadows, distressed effects, thin lines, and pale colors. Those areas deserve a closer look because they can be hard to spot in a small preview.

Also inspect for unwanted objects outside the design area: stray pixels, leftover guides, crop marks, and hidden layers. If a shop uses a cut line or a bleed rule, follow that shop’s stated specification rather than assuming the builder will create it.

Set up the sheet correctly

Start a new layout by selecting the size that matches the sheet you are buying or printing. The width and length shown in the builder are production constraints, not suggestions. A layout made for one sheet size may not fit another.

Before uploading, check these points:

• the measurement unit is correct
• the sheet orientation matches the production workflow
• the usable print area is clear
• any edge restrictions are understood
• the design sizes are written down or included in file names

If you are ordering transfers from another business, read that business’s current file requirements before building the layout. Requirements can differ by workflow. If you print in-house, use the requirements set by your own printer, film, powder, and RIP process.

Place designs in a deliberate order

Upload one design at a time or in a small group. Immediately set each design to its final physical size. This prevents a common error: placing art to fit a gap, then discovering it is too large or too small for the garment.

A practical sequence is:

1. Place the largest designs first.
2. Set their exact final sizes.
3. Add repeated copies of those designs.
4. Place medium designs in the remaining areas.
5. Use small marks only after the main pieces are locked.
6. Review the sheet at normal zoom and at close zoom.

Keep each design easy to recognize. If a logo has versions for several garments or customer groups, do not rely on memory. Use a consistent naming system and compare each copy against the job ticket.

A gang sheet layout calculator can help estimate whether planned designs fit a chosen sheet before you spend time arranging them.

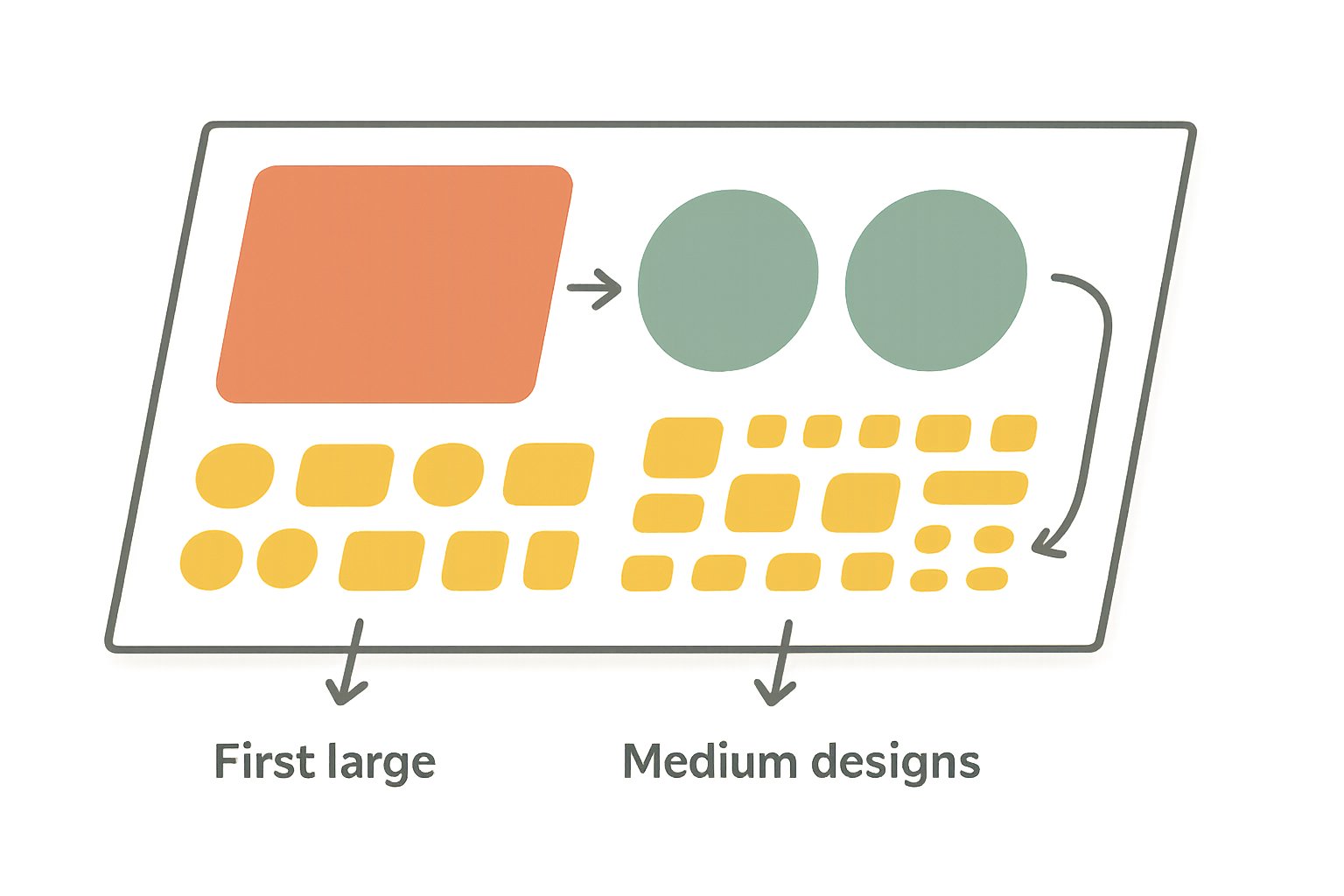

Lock final sizes before using small items to use remaining space.

Leave workable separation

The exact gap depends on the cutting method, design shape, and production process. Instead of treating every gap as usable space, leave enough separation for a clean visual boundary and practical handling after printing. Check the current instructions from the business producing the sheet.

Avoid allowing designs to touch unless they are meant to become one transfer. Touching edges can make it harder to identify where one item ends and another begins. It can also create problems when a layout is trimmed or separated later.

Do not place critical artwork against the sheet edge unless the production specification explicitly allows it. Keep important details inside the usable area.

Use auto-layout carefully

Auto-layout can be useful when a job has many repeated designs. It may place files quickly and reduce obvious empty areas. But it cannot know whether a small logo should be 3 inches wide, whether a design is upside down for your workflow, or whether two similar files belong to different orders.

After auto-layout, review these items manually:

• every design’s final size
• copy count for every design
• rotation and orientation
• separation between neighboring designs
• placement within the usable area
• unwanted background pixels or file artifacts
• correct version of each design

If the tool provides a preview image, download or inspect it at a useful zoom level. A preview is an approval checkpoint, not merely a confirmation screen.

Estimate layout use without confusing it with profit

A dense-looking sheet is not automatically a profitable sheet. Material use is only one part of the cost. Labor, reprints, payment fees, packaging, shipping, equipment use, and support time may also matter.

You can estimate used print area with this formula:

$$ \text{used area} = \sum(\text{design width} \times \text{design height} \times \text{quantity}) $$

Example: a sheet has four designs, each 4 inches wide by 5 inches high:

$$ 4 \times (4 \text{ in} \times 5 \text{ in}) = 80 \text{ square inches} $$

This is an area estimate only. It does not include the gaps between designs, unusable edge area, or the actual sheet price. For a fuller pricing check, use the gang sheet pricing calculator or the DTF transfer pricing calculator.

Run a final preflight check

Use a repeatable preflight checklist. This is especially important when more than one person receives artwork, builds the sheet, and handles customer approval.

• Confirm the sheet dimensions.
• Confirm every design is present.
• Count repeated copies.
• Check the placed width and height of each design.
• Review transparent areas and edges at close zoom.
• Check for artwork touching or running into restricted edges.
• Confirm orientation for the print and press workflow.
• Compare the finished sheet to the order or job ticket.
• Save the final export with an identifiable file name.

Keep the source files and the final approved layout together. If a customer reorders later, this makes it easier to check whether the new order matches the prior version. It also makes corrections easier when the customer changes only one design or size.

When to rebuild the layout

Rebuild rather than patch the sheet when the job changes in a meaningful way. Examples include a different sheet size, a revised logo, a different garment print size, or an added quantity that changes the arrangement. A quick fix can be fine for a minor change, but it is easy to overlook old copies or mismatched sizes when repeatedly editing an old layout.

For recurring jobs, document the decisions that matter: supplier or in-house sheet size, final sizes, quantity, file version, and approval status. That record is more useful than relying on a visual memory of a prior sheet.
